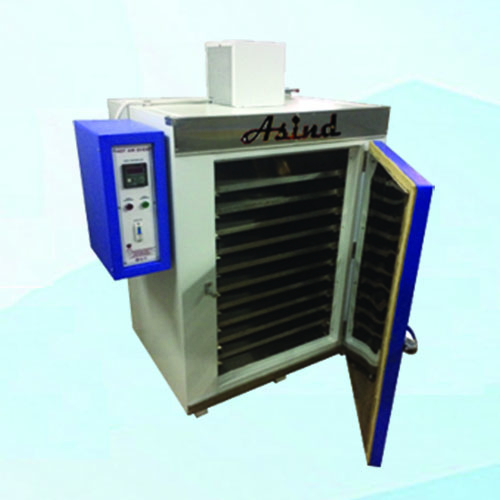

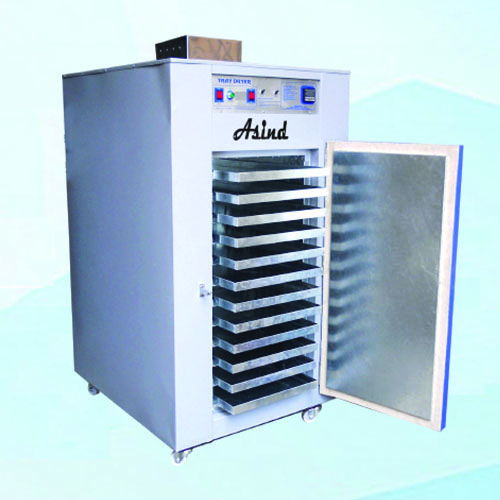

APPLICATION:-
- Suitable for various industrial, laboratory and R & D applications.
- Heavy Forced Air Circulation by Strong and Reliable axial flow fans for cross flow circulation.
- Voltage and Ampere meter equipped for monitoring safe operating of the machine.
- Digital PID Control System enables superior temperature accuracy
- Over Temperature & Over Current Protection.
- Adjustable Damper to exhaust moist air or fumes/vapours which in turn enhances efficiency
- Heating is through special grade tubular air heaters placed in the circulating air path.
- Sturdy triple walled unit built with suitable mild steel sections and heavy gauge mild steel sheet.
- High Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at desired temperature.
- Interior of the oven is painted with high temperature aluminium paint.
- Exterior of the oven is powder coated
- Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.
TECHNICAL SPECIFICATION INFORMATION:-
| Model No | ASI-TD-8 | ASI-TD-12 | ASI-TD-24 | ASI-TD-48 | ASI-TD-96 |
|---|---|---|---|---|---|
| Internal Work Dimension(W x D x H) (mm) | 430X840X650 | 430X840X915 | 915X840X915 | 965X1275X1450 | 965X1700X1450 |
| Tray Capacity | 8 | 12 | 24 | 48 | 96 |
| Temperature Range | Ambient +5ºC to 150ºC | ||||
| Forced Convection | Available with forced convection system (Standard Features) | ||||
| MOC (Outer) | PCRC Sheet Duly Powder Coated | ||||
| MOC (Inner) | PCRC Sheet Duly Powder Coated | ||||
| Temp. controller | Microprocessor based PID Digital Temperature Indicator-Cum-Controller with LED Display OR Auto time Control Microprocessor With Digital Timer | ||||
| Temp. Accuracy | ± 2ºC | ||||
| Circulation | Heavy Forced Air Circulation by Strong & Reliable axial flow fans for cross flow circulation | ||||
| Regulator | Solid state electronic relay with protective heat sink | ||||
| Door Packing | Asbestos/Silicon Packing Door | ||||
| Power Supply | 220/230 or 400/430V, 3 Phase A.C. Supply | ||||
